產品參數
|

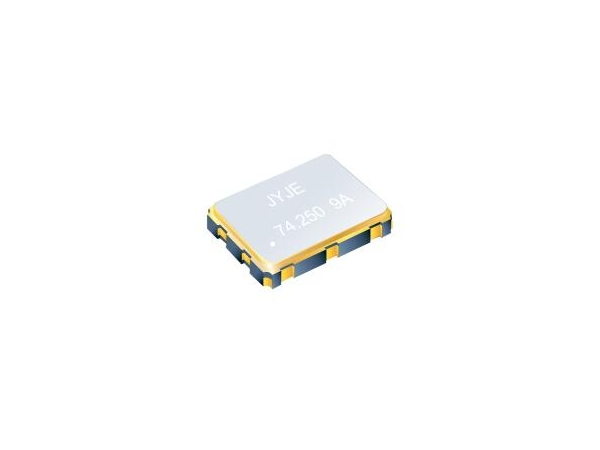

VCXO 7050項目類型Item / Type |
目錄Content |
Units |
|
|
1 |
輸出類型Output Type |
CMOS |
- |
|
2 |
輸出負載Output Load |
15～30 |
pF |
|
3 |
振動方式Oscillation Mode |
Fundamental |
- |
|
4 |
電源電壓Supply Voltage |
1.8 3.3 5 |
V |
|
5 |
頻率范圍Frequency Range |
1.000～54.000 |
MHz |
|
6 |
工作溫度Operating Temperature Range |
-10～+70 , - 40～+85 |
℃ |
|
7 |
儲存溫度Storage Temperature Range |
- 55～ +125 |
℃ |
|
8 |
電壓Voltage Vol ( Max.) / Voh ( Min.) |
0.1 VDD / 0.9 VDD |
V |
|
9 |
上升(Tr) /下降(Tf)延Rise ( Tr ) / Fall ( Tf ) Time |
5 Max. |
ns |
|
10 |
電源電流Supply Current |
45 Max. |
mA |
|
11 |
對稱性Symmetry |
45～ 55 |
% |
|
12 |
啟動時間Start-up Time |
10 Max. |
ms |
|
13 |
頻率牽引范圍Frequency Pulling Range |
±50 , ±100 or specify. |
ppm |
|
14 |
控制電壓Nominal Control Voltage |
0.5 VDD |
V |
|
15 |
控制電壓范圍Control Voltage Range |
0～VDD |
V |
|
16 |
線性度Linearity |
±10 Max. |
% |
|
17 |
相位抖動Phase Jitter ( 12 KHz ～ 20 MHz ) |
1 Max. |
ps |
|
18 |
老化率Aging ( at 25℃ ) |
±3 Max |
ppm / year |
