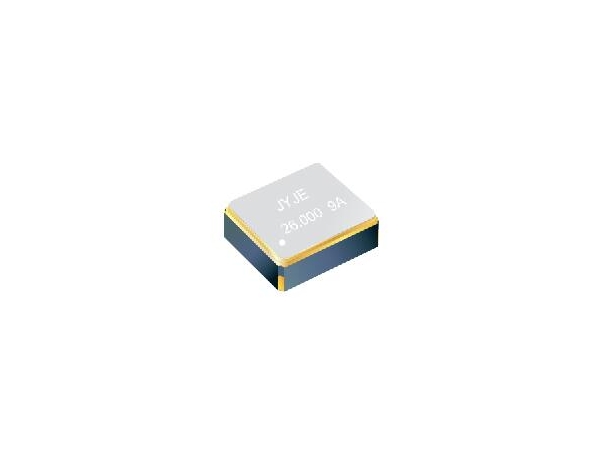

TCXO 3225項目類型Item / Type

目錄Content

Units

1

輸出類型Output Type

Clipped Sinewave

-

2

輸出負載Output Load

10KΩ // 10 pF

pF

3

振動方式Oscillation Mode

Fundamental

-

4

電源電壓Supply Voltage

1.8  3.3  5

V

5

頻率范圍Frequency Range

2.500～54.000

MHz

6

剪切正弦波輸出電壓Clipped Sinewave Output Voltage

0.8 Min.

Vp-p

7

頻率穩定度Frequency Stability

Vs. 溫度 Temperature ( - 30 ～ + 85 ℃ )

±0.5 / ±2.5

ppm

Vs. 負載 Load ( Load varies ± 10 % )

±0.2 Max.

ppm

Vs. 電源電壓Supply Voltage ( Vcc = Typical ± 0.1 V )

±0.2 Max.

ppm

8

頻率公差Frequency Tolerance

在25℃下二次回流，具有典型的應用于自動頻率控制銷at 25℃ after 2 Reflows with Typical Applied to Auto Frequency Control Pin

±2.5 Max.

ppm

9

頻率漂移斜率Slope of Frequency Drift

±0.1  Typical;±0.5 Max.

ppm / ℃

10

儲存溫度范圍Storage Temperature Range

-40～+85

℃

11

自動頻率控制(AFC)范圍*Auto Frequency Control ( AFC ) Range *

±7～±16(1.4+/-1V)

ppm

12

電源電流Supply Current

2.0 Max.

mA

13

啟動時間Start-up Time

5 Max.

ms

14

諧波Harmonics

-5 Max.

dBc

15

相位噪聲在1千赫偏移Phase Noise at 1 kHz offset

-130

dBc / Hz

16

老化率Aging ( at 25℃ )

±1 Max.

ppm / year
